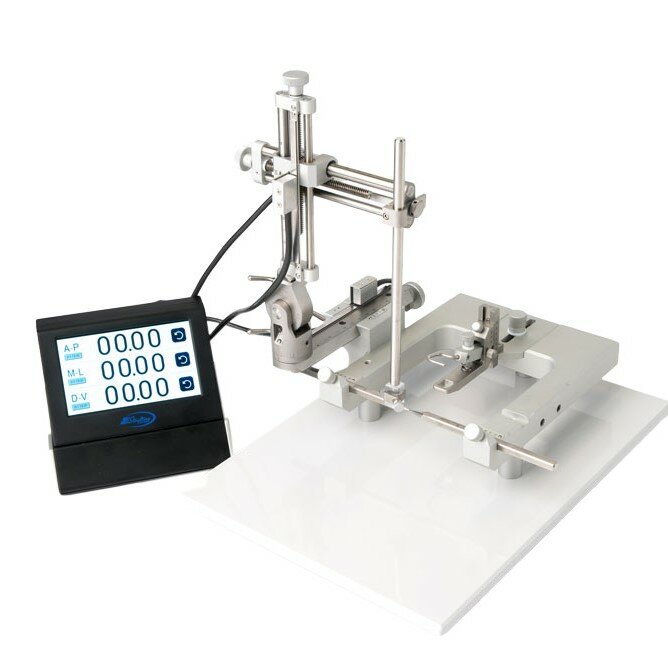

Digital Rat Stereotaxic Instrument

Digital arms increases accuracy and reduces error
Item Product Price QTY
51900 Digital Lab Standard Stereotaxic, Rat Login
51950 Digital Lab Standard Stereotaxic, Rat (non-rupture ear bars) Login
51903 Digital Dual Lab Standard Stereotaxic, Rat Login
51953 Digital Dual Lab Standard, Rat (non-rupture ear bars) Login
51900U Ultra Precise Digital Lab Standard, Rat Login
51903U Ultra Precise Dual Digital Lab Standard, Rat Login
51970 Digital Lab Standard with Mouse and Rat Adaptors Login
51973 Digital Dual Lab Standard with Mouse and Rat Adaptors Login
Building on the Classic Lab Standard&trade Stereotaxic design, our Digital model offers greater speed of operation and increased accuracy. Fit with an easy-to-read digital display and sealed electronic sensors operation of the instrument is easy and precise. Simply move your probe to an established reference point (e.g. Bregma), zero the LED display and move to the desired coordinates.

10 micron resolution in all three directions

Features

  • Zeroing function for targeting specific coordinates
  • Easy-to-read digital display offers 10 micron resolution in all three axes
  • Triple-lead screws for fast positioning
  • 80mm of dorsal-ventral, medial-lateral and anterior-posterior travel
  • Absolute lock at 90° vertical
  • Adaptors available for mice,neonatal rats, birds and most other species
  • Easily cleaned,durable surface
  • Warmer ready base that is compatible with the Stoelting Rodent Warmer Systems

Saves Time and Improves Accuracy

Stoelting introduces its latest innovation to our Lab Standard™ Stereotaxic Instruments. We have added a sealed  electronic sensor, highly immune to outside interference and environmental conditions, to each axis of the manipulator arm. Measurements are accurate to 10 microns in all three directions. Movements are now monitored by a large, easy-to-read display module, with resolution as precise as 10 microns.

Zeroing Function

A zeroing function makes setting a reference point for targeting specific coordinates on the animal’s skull as easy as 1-2-3.

  1. Find reference point, e.g. Bregma
  2. Reset zero on touch screen display
  3. Move to the desired coordinates

Your Choice of Three Purchasing Options

  1. New Digital Lab Standard™ Stereotaxic Instrument complete with touch screen digital display.
  2. Add new Digital Manipulator Arms and a touch screen display to your current Lab Standard™ or similar brand of stereotaxic.
  3. Convert your existing Lab Standard™ by adding digital sensors to their manipulator arms. Touch screen display module included.

Digital Stereotaxic Saves Time and Improves Accuracy

Sealed electronic sensor, highly immune to outside interference and environmental conditions, have been added to each axis of the manipulator arm. Measurements are accurate to 10 microns in all three directions. Movements in all three directions are now monitored by a large, easy-to-read display module, with a resolution selectable from 1 mm to 10 microns.



A zeroing function allows the user to set a reference point for targeting specific coordinates on the animal’s skull for injection, implantation, etc. Calculation of distance measurements via the vernier scales is thus no longer necessary…saving the user valuable time and improving accuracy.

The classic design and high quality of our conventional Lab Standard™ manipulators are exactly the same on the new Digital Stereotaxic, with no drift and smooth movements. The Digital Lab Standard™ keeps the custom triple-start lead screws to allow fast positioning, while maintaining consistently smooth movement. The thin cords from the sensors do not interfere with movements, allowing the arm to move freely and be set at any angle.

Zeroing Function for Targeting Specific Coordinates
The display of each axis can be “ZERO”ed at any location, making operation simple and straightforward. To target a specific location, start at Bregma, and reset all coordinates to zero. Move the manipulator arm to the desired point and lower the electrode, probe, or micropipette into place.

Memory
Target coordinates can be programmed into the memory of the 51900 and 51903 Digital Lab Standard™ Stereotaxics.

Versatility of Positioning
The universal joint allows the investigator to angle the probe in either the anterior-posterior or the lateral-medial planes. The improved locking mechanism on the Lab Standard™ Stereotaxic Instruments will hold any angled position without slippage. Of course, it also provides an absolute lock at the vertical position. The manipulator arm may be swiveled out of the way for convenience in installing the animal or performing a procedure, then returned to the same point reliably with the aid of the locking face block above the swivel joint.

Accessories
All of the accessories for the Lab Standard™ Small Animal Stereotaxic Instrument fit the 51900 and 51903 Digital Lab Standard™ Small Animal Stereotaxic Instrument. Probe holders and species adapters for "U" frame stereotaxic instruments made by other manufacturers are generally compatible with the Lab Standard frame.

The 51900 and 51903 Digital Lab Standard™ Small Animal Stereotaxic Instruments come complete with a standard probe holder with corner clamp (51631) and a Rat Adapter (51621) with nose holder and 18 degree taper ear bars. The 51950 and 51953 include the non-puncture (45°) ear bars instead of the 18-degree ear bars. They are otherwise identical to the 51900 and 51903.

The time-proven U-Frame design concept, rugged construction, and adaptability to most species used in the lab make Stoelting’s Lab Standard™ series the best choice for stereotaxic instruments.
