Ultra Precise Mouse Stereotaxic Instruments

Ideal for high-accuracy positioning
Item Product Price QTY

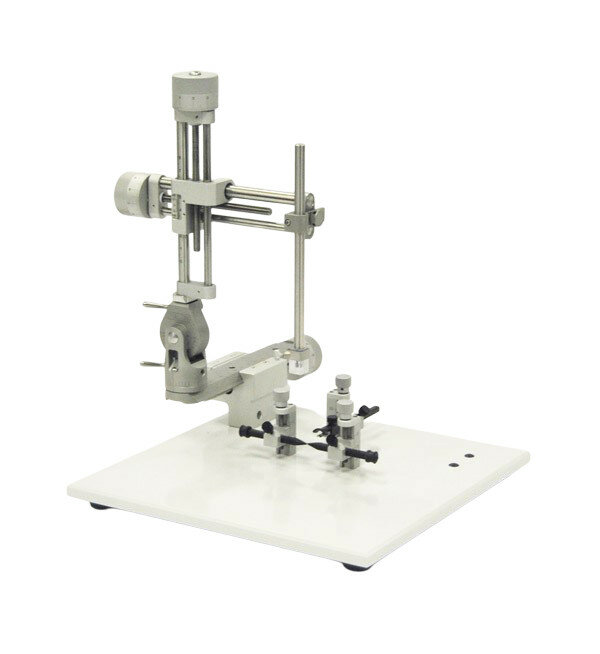

51730U Ultra Precise Just for Mouse Stereotaxic Instrument Login
51733U Ultra Precise Dual Just for Mouse Stereotaxic Instrument Login
51615U Ultra Precise Lab Standard with Mouse and Neonates Adapter Login

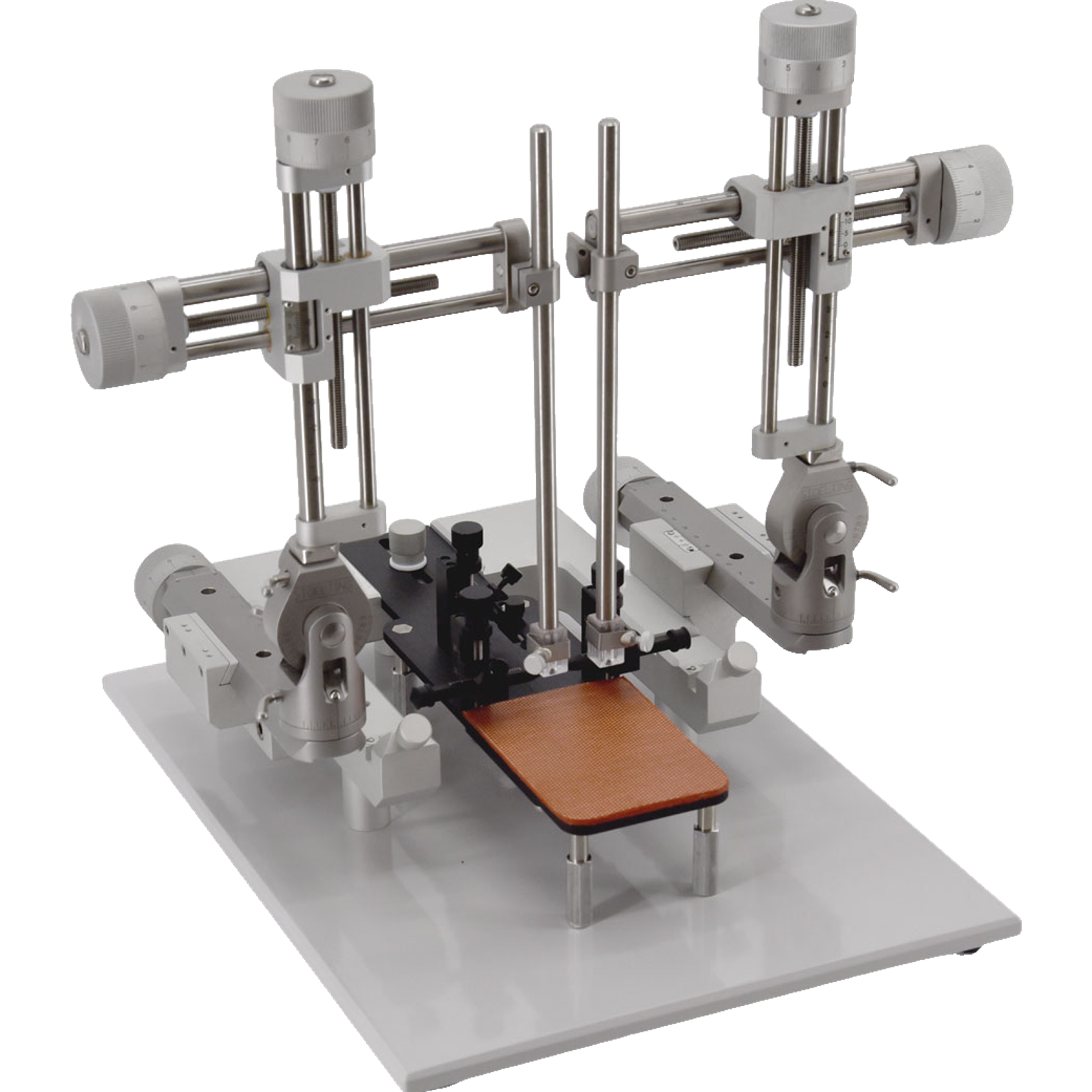

51618U Ultra Precise Dual Lab Standard, Mouse Login
51647 Jaw Holder Cuffs for Mouse Ear Bars Login
51609M Mouse Stereotaxic Gas Anesthesia Mask (51730 series) Login
51649 Non-Rupture Ear Bars and Rubber Tips f/ Mouse Stereotaxic Login
51649-1 Non-Rupture Ear Bars and Serrated Cuffs f/Mouse Stereotaxic Login
51730UD Ultra Precise Digital Just for Mouse Stereotaxic Instrument Login
51733UD Ultra Precise Digital Dual Just for Mouse Stereotaxic Inst. Login

Our Mouse specific Stereotaxic Instruments were specifically designed for use with knock-out and transgenic mice. The Ultra-Precise version of these stereotaxics make them ideal for use in stereotaxic surgery where high-accuracy positioning is required. Up to 80mm of travel is available in all directions with up to 90° angle adjustment in either the anterior-posterior or medial-lateral planes.

NEW FEATURE: The ONLY stereotaxic instrument on the market with an integrated warming base included on all units! Simply purchase Stoelting’s Rodent Warmer Control Box X1 (item 53800), or Rodent Warmer Control Box X2 (item 53850) to use the warming function.

Ultra-Precise Stereotaxics
Precision Like Never Before!

Ultra-Precise Manipulators are ideal for use in mice and rats where high-accuracy positioning is required. Up to 80mm of travel is available in all directions with up to 90° angle adjustment in either the anterior-posterior or medial-lateral planes. Ultra-Precise Manipulators are compatible with all Stoelting Stereotaxic Series including New Standard, Lab Standard, Just for Mice and Just for Mouse Dual, Digital and Motorized Ultra-Precise Manipulators are also available.

Ultra-Precise Features:

  • 10 Micron Resolution
  • Target Small Brain Regions with Confidence
  • Upgrade to ANY Stoelting Stereotaxic and most other brands

51730 - Our smallest and lowest priced Stereotaxic Instrument!

  • 25cm X 25cm Footprint
  • Warmer ready base compatible with Stoelting Rodent Warmer System
  • Gas Anesthesia compatible
  • Ear and tooth bar post height adjustment to accommodate animals between 10-75g
  • Delrin® ear bars, with 3 types of head holders
  • Triple lead screw in manipulator arm for fast positioning
  • Dual arm capable (2nd Arm is optional)
  • Digital LED display (Digital Only)
  • Software and motor controlled (Motorized Only)
  • Integrated Stereotaxic Atlas (Motorized Only)
  • Accurate to 100 microns (Non-Digital), 10 microns (Digital Only) or 1 micron (Motorized Only)
The Stoelting Just For Mouse™ Stereotaxic Instrument was specifically developed for the expanding growth of research being conducted in laboratories using knock-out and transgenic mice. The Stoelting Just For Mouse™ is ideal for researchers in need of a versatile, reliable instrument for stereotaxic procedures with mice and other small rodents. Precision alignment when using the Just For Mouse ensures accurate placement of electrodes, micropipettes, cannula, and other devices. Stoelting’s Just For Mouse is the only instrument built especially for mice, and offers several advantages over competing "made for rat" instruments. Small Footprint The small size, one of the smallest on the market, is ideal for laboratories with small spaces or for use in surgical suites that require transportation of equipment to and from surgical facilities. A zeroing function allows the user to target specific coordinates in the brain for injection, implantation, etc. Calculation of distance measurements is thus no longer necessary...saving valuable time and improving accuracy. Dual Manipulator Arms Add another manipulator arm for increased versatility. Often used for electrophysiology studies that requires both recording and stimulation. Unique, light ear bars Ear bar posts may be independently adjusted in height—a unique feature of this stereotaxic instrument—to level the skull. Ear bars are composed of light Delrin material with tapered points or non-invasive rubber pads or jaw holder cuffs. Laser engraved scales show the vertical positions of the ear bars. Model organisms with soft skulls, such as the mouse and the neonatal rat, are difficult to secure firmly in a traditional stereotaxic instrument. The stainless steel ear bars used for adult rats are too heavy to provide a secure hold without compressing the sides of the skull inward (which closes the airways and impedes blood flow).
