Ugo Basile Passive Avoidance Step-Down Apparatus

Automatic recording of escape latency!

Item Product Price QTY
57560 Ugo Basile Passive Avoidance (step-down), Mouse Login
57565 Extra Mouse Cage for 57560 Login
57560-010 Software Activation Code for Passive Avoidance Step-Down Login

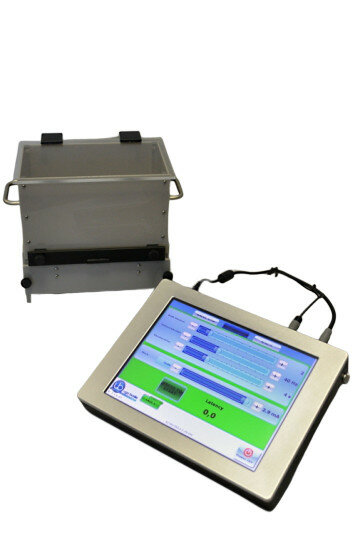

The Ugo Basile Passive Avoidance Step-Down Apparatus is used for evaluating learning and memory.  The step-down apparatus consists of a 28(w)x23(d)x26(h) cm Perspex box with an electrified cage floor (40, 0.2cm stainless steel bars spaced 0.5cm apart) and an elevated vibrating platform (7cm).  Mice are placed on the elevated platform and, when the animal steps off of the platform, a shock is induced.  Latency for the mouse to return to the platform is automatically recorded.


The Ugo Basile Step Down Passive Avoidance system is designed for use with mice or juvenile rats.  The animal is simply placed on an elevated, vibrating platform and, when the animal steps down, a shock is induced.

A 7 cm platform elevated above the floor grid of a 28x23cm box provides the arena for Step-Down experiments. The platform is connected to an actuator which causes the platform to shake. When the animal steps off of the platform to the electrified grid, the stop command is used to cut actuator power, the platform vibration stops and triggers the latency counter.
Latency time is recorded to 1/10 of a second. The vibration intensity can be changed by a thumb switch on the front panel of the instrument, in the range 10-90 Hz. An 11 cm platform is also included, for using with larger animals.
Start : via the key on the control unit
Stop: via the key on the control unit
Shock: 0 to 2.9mA, in 0.1mA steps
Vibration range selectable by thumbwheel in 9 steps, from 10 to 90 Hz
Latency Time: 4-digit LED display, 0.1s steps
Power Requirement: 115or230V, 50/60Hz, 18W max
Operating Temperature: 10° to 30° C
Sound Level < 70 dB








Physical Dimensions:
Dimensions (7571): 26 (w) x 30 (d) x 12 (h) cm
Dimensions (7573): 28 (w) x 23 (d) x 26 (h) cm
Packing Dimensions: 80 x 60 x 44 cm
Weight: Kg  6.7
Shipping Weight: Kg 16 (approx.)
