Ugo Basile Electro-Convulsive Device
Biphasic Pulse Accessory and Ultra-Safe Corneal Electrode Applicator

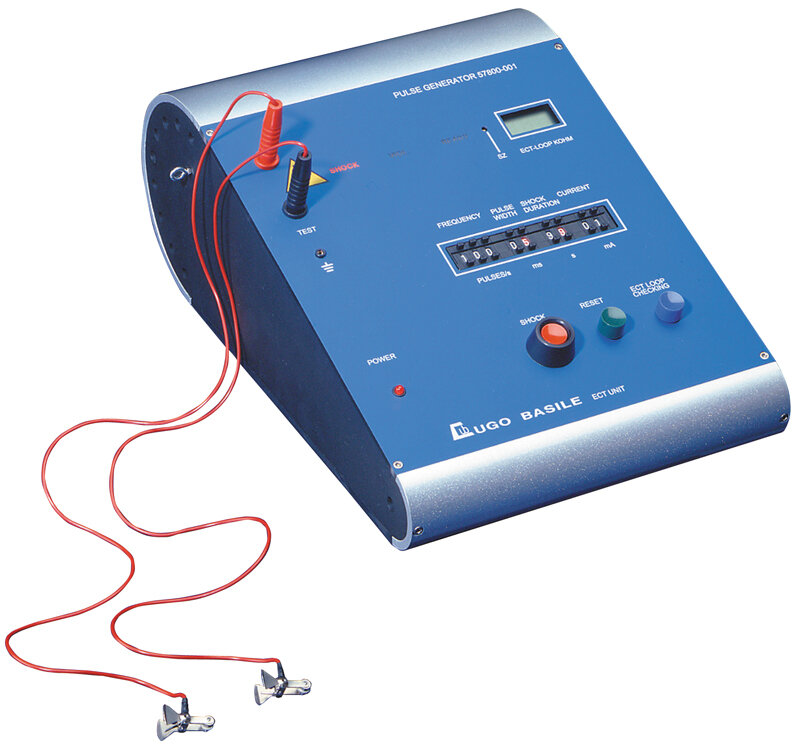

The Ugo Basile Electroconvulsive Device is designed for inducing convulsions in research animals. Consistent reproducible current levels are produced by feedback circuitry that adjust for variance in impedance of the contact from animal to animal.
The impedance to the animal can be pre-measured and displayed, and a warning signal flashes if the impedance is too great to deliver the desired current level. The Electroconvulsive Device is supplied with auricular (ear lobe) electrodes. Corneal electrodes (57803) are optional.
57803 Corneal Electrodes
An optional Biphasic Unit box may be placed between the animal and the Electroconvulsive Device to invert every other pulse. Maximum frequency in this case becomes 100Hz.
|Shock Duration||0.1-9.9 sec.|
|Compliance Voltage||2.5 kV|
|Output Impedance||0 Ohm to 25 kOhm|
|Pulse Width||0.1 - 0.9 ms.|
|Pulse Rise and Fall Time||20 µs|
|LED Display||0 to 199 kOhm|
