Stainless Steel Microelectrodes
From Fredrick Haer Company
NeedlecraftTMmetal micro and stimulating electrodes are used by hundreds of research investigators worldwide. The configurations below are recommended for most recording and microstimulating applications.

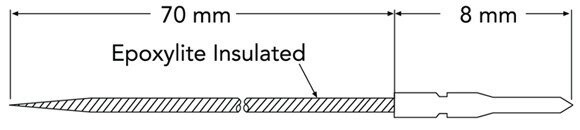

These Stainless Steel electrodes have a .010" (250 micron) shank diameter and a standard length of 70 mm, with an 8 mm gold pin terminal. Stainless steel electrodes with blunt profiles are recommended for cortical recording with the dura removed. Finer profiles track better for deep recording.
Metal microelectrodes are stocked in two impedance ranges corresponding to 5 microns exposed tip length (8MOhm impedance at 1000Hz) and 25 microns (3MOhm impedance). Higher impedance electrodes are ideal for recording from single cells in deeper structures. Electrodes with a lower impedance are recommended for stimulating, or recording from, large or multiple cells. Stainless steel electrodes with a blunt tip and low impedance are especially useful for lesion marking in the brain.
Generally, the larger the exposed tip length (the lower the impedance), the greater number of cells from which potentials will be recorded. Also, the deeper the recording site, the higher electrode impedance is required. A complete line of electrodes from FHC is available from Stoelting. Please call for assistance in selecting the best configuration for your research application.
|Stainless Steel Microelectrode .010" Sold in Packages of 12 each
|Recording from large or multiple cells near surface, iron marking
|Recording from small cells near surface, iron marking
|Recording from larger cells in deeper structures, iron marking
|Recording from small cells in deeper structures, iron marking
