Robotic Manipulator Arms

Automated movement in all 3 orthogonal axes
Item Product Price QTY
51704 Robotic Stereotaxic Manipulator Arm, 3 Axis, LEFT Login
51706 Robotic Stereotaxic Manipulator Arm, 3 Axis, RIGHT Login

Upgrading to Robitc will provide you with automated movement in all 3 orthogonal axes. This movement is integrated, controlled and directed by our innovative software. The software also provides a virtual 3-D map of the brain atlas and displays real time movement of the manipulators and provides a visual marker of a probe's path through the brain.

The Robotic Stereotaxics combine the classic design of our time-proven ‘U’-Frame with customized motors and state-of-the-art software.

Designed to adapt conventional stereotaxic systems, the StereoDrive software allows motorized, computer controlled stereotaxic positioning in all 3 orthogonal axes.

Integrated with Paxinos and Watson’s Rat Brain in Stereotaxic Coordinates, for either rat or mouse, the intuitive movement control enables unprecedented accuracy and higher throughput in all stereotaxic applications.

Features:

  • Digital Atlas integration
  • Frame representation
  • Calibration of frame coordinates
  • Setting of logical coordinate system (Bregma)
  • Coordinates and Atlas visualization of the probe
  • Advanced 3D visualization options
  • Spatial Atlas representation
  • Intuitive probe control
  • Intuitive navigation

 Motorized Images
Axial View                             Coronal View                          Sagittal View                        Working View



Robot Upgrade
Your choice of two service options:

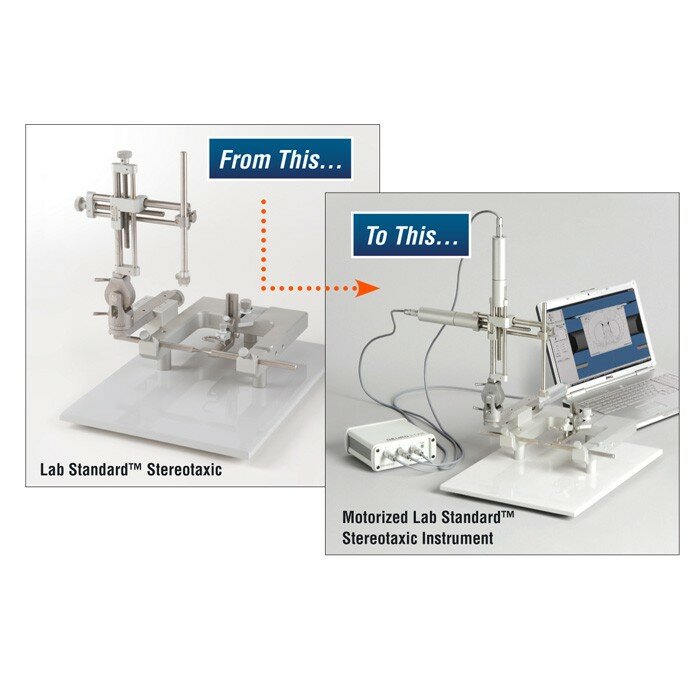

  • Option 1: New Robotic Manipulator Arm and Axis StereoDrive Software
    Keep your existing arm. We'll ship you a new one.
  • Option 2: Conversion to Robotic Manipulator Arm and Axis StereoDrive Software
    Send us your existing arm. We will convert it to motorized for you.

Motorized Lab Standard Stereotaxic Software Sampler
The StereoDrive software display is divided into the navigation section on the left and the 3D atlas view on the right side of the window.
Software Image 51700

1. Atlas View

2. Actual position of the probe (logical or physical)

3. Axial view thumbnail — indicating the movement in anterior-posterior (X-axis) or medio-lateral (Y Axis) direction

4. Coronal view thumbnail — indicating the movement in medio-lateral (Y-axis) or inferior-superior (Z Axis) direction

5. Anterior-posterior (X) drive control region

6. Medio-lateral (Y) drive control region

7. Inferior-superior (Z) drive control region

8. Actual coordinates of the probes tip

9. Editable target coordinates of the probes tip

10. Stop button

11. GoTo button

12. Set Lambda button — setup of the logical coordinate system

13. Set Bregma button — setup of the logical coordinate system

14. Tools — access to the microdrive calibration (frame coordinate system)

Motorized StereoDrive Software
Axis StereoDrive Software integrates seamlessly with the precision controlled motors. Motor movement can be executed by using the keyboard arrow keys or clicking on the screen with the mouse.

The software coordinates motor movement of all 3 axes (anterior-posterior, medial-lateral, and dorsal-ventral) probe placement in relation to 3-dimensional visual representation of a rat (Paxinos & Watson, 6th Edition) or mouse (Watson, 3rd edition) Brain Atlas.

Features

  • Easy calibration
  • Software-driven control of stereotaxic movement
  • Virtual visualization of probe location
  • One micron resolution
  • Download coordinates to computer for recall and/or archiving
  • Angle adjustments
  • Variable speed on 2-axis (dorsal-ventral)



Integrated with Paxinos and Watson’s Rat Brain in Stereotaxic Coordinates, the intuitive movement control enables unprecedented accuracy and higher throughput in all stereotaxic applications

Image manipulations include:

  • Spatial Rotation
  • Fixed Rotation
  • Zooming
  • Panning
