Robot Stereotaxic Instruments for Rat
|51700||Robotic Lab Standard Stereotaxic, Rat, Std Earbars||Login|
|51750||Robotic Lab Standard Stereotaxic, Rat, Non-Rupture Earbars||Login|
|58640||Robot Drill for Motorized Stereotaxic Systems||Login|
|58645||Injection Robot for Motorized Stereotaxic Systems||Login|
|58643||Robot Drill & Injection Bundle for Motorized Stereotaxic Sys||Login|
|51722||Laptop Computer Only (Robotic Stereotaxic Sys)||Login|
|51749||Robot Drill AutoStop Function, ADD ON||Login|

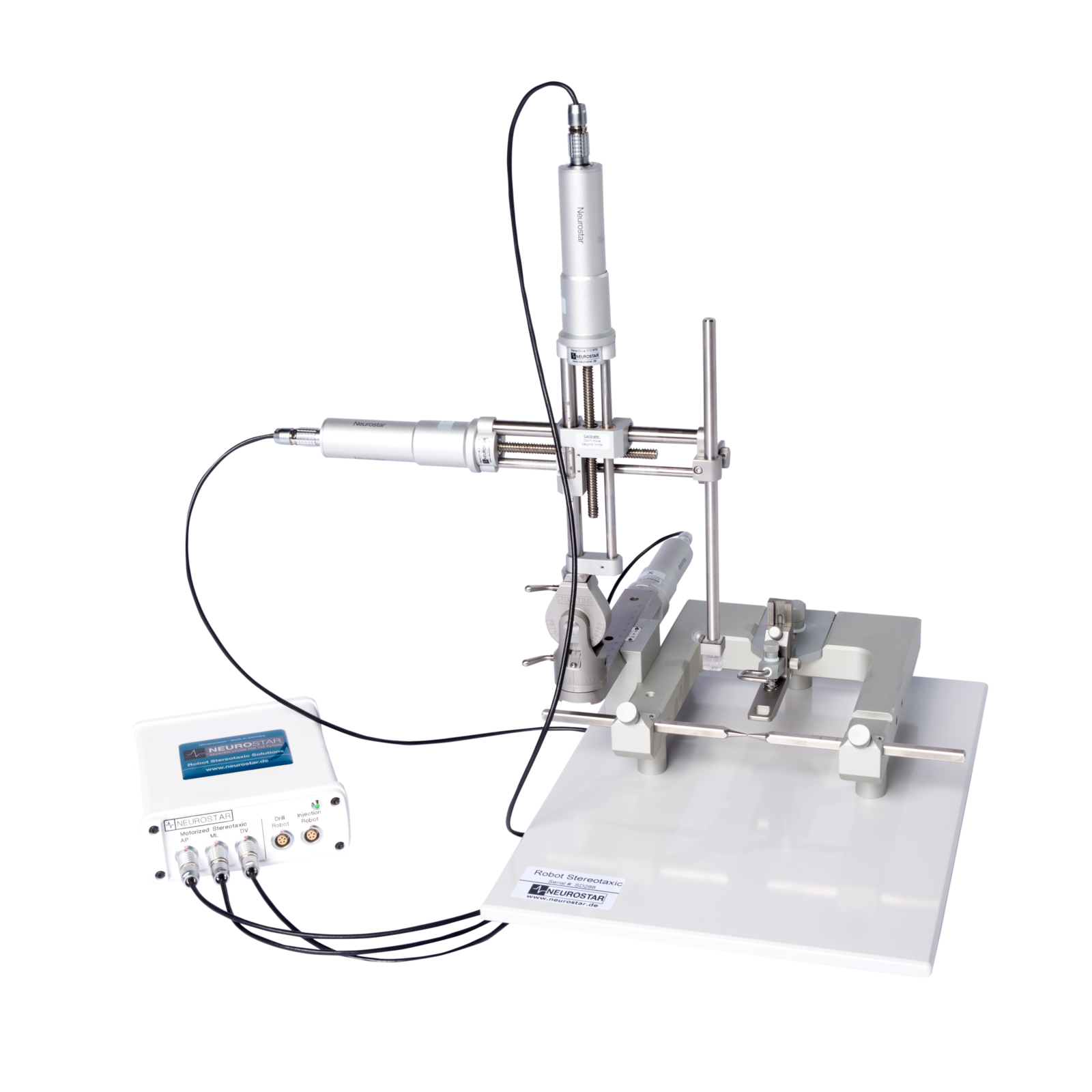

The Robotic Lab Standard Stereotaxic combines the classic design of our time-proven ‘U’-Frame with customized motors and state-of-the-art software.
Designed to adapt conventional stereotaxic systems, the StereoDrive software allows motorized, computer controlled stereotaxic positioning in all 3 orthogonal axes.
Integrated with Paxinos and Watson’s Rat Brain in Stereotaxic Coordinates, for either rat or mouse, the intuitive movement control enables unprecedented accuracy and higher throughput in all stereotaxic applications.
- Digital Atlas integration
- Frame representation
- Calibration of frame coordinates
- Setting of logical coordinate system (Bregma)
- Coordinates and Atlas visualization of the probe
- Advanced 3D visualization options
- Spatial Atlas representation
- Intuitive probe control
- Intuitive navigation
The 51707 Robot Drill and Microinjector System, Rat includes the following:
1 ea. 51700 Motorized Lab Standard Stereotaxic Inst., Rat with StereoDrive software and controller
1 ea. 58643 Robot Drill & Injection Bundle for Motorized Stereotaxic Systems
1 ea. 51749 Robot Drill AutoStop Function, ADD ON
1 ea. 51722 Laptop Computer for Motorized/Robot Stereotaxic Instruments
Motorized StereoDrive Software
Included with Motorized Lab Standard™ Stereotaxic
The StereoDrive Software integrates seamlessly with the precision controlled motors. Motor movement can be executed by using the keyboard arrow keys or clicking on the screen with the mouse.
The software coordinates motor movement of all 3 axes (anterior-posterior, medial-lateral, and dorsal-ventral) probe placement in relation to 3-dimensional visual representation of a rat (Paxinos & Watson, 6th Edition) or mouse (Watson, 3rd edition) Brain Atlas.
- Easy calibration
- Software-driven control of stereotaxic movement
- Virtual visualization of probe location
- One micron resolution
- Download coordinates to computer for recall and/or archiving
- Angle adjustments
- Variable speed on 2-axis (dorsal-ventral)
The Motorized Lab Standard Stereotaxic combines the classic design of our time-proven ”U”-Frame with customized motors and state-of-the-art software.Designed to adapt conventional stereotaxic systems, the StereoDrive software allows motorized, computer controlled stereotaxic positioning in all 3 orthogonal axes.
Integrated with Paxinos and Watson’s Rat Brain in Stereotaxic Coordinates, the intuitive movement control enables unprecedented accuracy and higher throughput in all stereotaxic applications
Image manipulations include:
- Spatial Rotation
- Fixed Rotation
