Muromachi Non-Invasive Blood Pressure Monitor (indirect)

Physiological Monitoring Blood Pressure
Physiological Monitoring Blood Pressure
Product small image
Product small image
Product small image
Product big image
ITEM: 50370

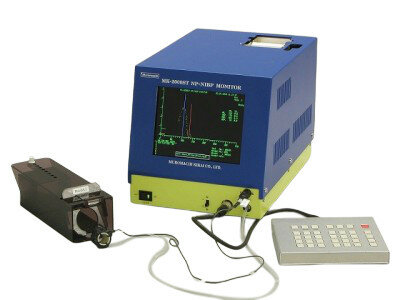

Muromachi Non-Invasive Blood Pressure Monitor (indirect)

A true Plug-n-Play Non-Invasive Blood Pressure System
Item Product Price QTY
50370 Muromachi NIBP Monitor
50370V Muromachi NIBP Monitor, 220 Volt
50377 Cuff-Pulse for 50370, Rat, 90 - 210g
50378 Cuff-Pulse for 50370, Rat, 210 - 350g
50393 Cuff-Pulse for 50370, Rat, 350 - 500g
50379 Cuff-Pulse for 50370, Rat, 500 - 800g
50392 Cuff-Pulse for 50370, C57BL6 Mouse, 20 - 50g
50376 Cuff-Pulse for 50370, Mouse, 10 - 20g
50375 Cuff-Pulse for 50370, Mouse, 20 - 50g
50384 Rat Holder for 50370, 50-90g
50385 Rat Holder for 50370, 90-150g
50386 Rat Holder for 50370, 150-210g
50387 Rat Holder for 50370, 210-270g
50388 Rat Holder for 50370, 270-350g
50389 Rat Holder for 50370, 350-500g
50390 Rat Holder for 50370, 500-600g
50380 Mouse Holder for 50370, 10-20g
50381 Mouse Holder for 50370, 20-30g
50382 Mouse Holder for 50370, 30-40g
50383 Mouse Holder for 50370, 40-50g
50391 Software for 50370
50396 Cuff-Pulse Sensor for 50370, Neonatal Mouse, 1.4-2g
50397 Cuff-Pulse Sensor for 50370, Neonatal Mouse 2-5g
50398 Cuff-Pulse Sensor for 50370, Neonatal Mouse or Rat, 5-10g
50400 Mouse Holder for 50370, 5-10g
Icon cart Add to Cart
Add to Quote

Related Products + Recommendations

Frequently Purchased Together

Replacement Parts + Subcomponents

Provided the room temperature is at least 23°C, the animal’s blood pressure can be measured without heating the animal. After photoplethysmographically measuring tail arterial blood pressure, pulses are stored in the computer memory and peak levels of the pulses are plotted on a display. Preheating of animals not required so thermal stress can be avoided
Preheating of animals not required... avoid thermal stress

Provided the room temperature is at least 23°C, the animal’s blood pressure can be measured without heating the animal. After photoplethysmographically measuring tail arterial blood pressure, pulses are stored in the computer memory and peak levels of the pulses are plotted on a display.

Features

The 50370 Blood Pressure Monitor is perfect for measuring the effects of drugs on animals.

  • Use with animals under 10 grams
  • Use with C57 BL6 mice and colored mice
  • Use with Zucker Fatty Rats
  • Use with hamsters (with a leg cuff anesthetic)
  • The only monitor that can be used with guinea pigs — even without anesthesia!
  • The only monitor that can be used with OB (diabetic model) mice

Mean Blood Pressure (MBP)

Cuff pressure when pulse amplitude becomes largest

Diastolic Blood Pressure (DBP)

Calculated value based on SBP and MBP   (3MBP-SBP)/2

Detection

LED,  Photo Transistor

Inflation Range

0 - 350mmHg

Printer Outputs

Date, Time, Animal No., Weight, Operation Mode, Interval,   No of Measuring Trials, Raw Data,  Average and S.D.

Chart Paper

Thermo-sensitive 58 mm Wide x 25m Long

Power

110-240V, 50/60hz

Dimensions

210W x 310D x 210 mmH

Weight

Approx.  8 kg

Easy Operation

  • Two operation modes are available
    • Mode 1: HR (Heart Rate) and SBP (Systolic Blood Pressure)
    • Mode 2: HR, SBP, MBP (Mean Blood Pressure) and DBP (Diastolic Blood Pressure, calculated value) can be measured.
  • Continuous measurement can be performed up to ten (10) times.
  • Rapid Printout Function
  • Colored mice such as C57BL/6, neonatal mice, hamsters (anesthetized) and guinea pigs (non-anesthetized) can be measured.
  • Sick animals can be measured. (e.g. animal with cardiac infarction)
  • Multi-channel system is no longer needed. Just prepare multiple restrainers, and measurement can be done one after the other.
  • Auto-Sequence Function blood pressure of a tail artery of an animal can be monitored automatically at specified time intervals, which can be 1-99 minutes in length.
  • Time-Stamp Function
  • Hard Copy Function
  • An RS-232C interface is provided on the rear panel of the main unit. Using the optional Data Collection Software (Windows Version) the data obtained can be exported to a personal computer and stored as a CSV file.
  • The animal holders are made of dark brown acrylic, allowing BP measurement under relatively stress-free conditions.
  • Operation is very simple

Included Accessories
Includes: Built-in Printer, 9" Display, Measuring Stand, choice of Cuff- Pulse Sensor, choice of Animal Holder, and 5 rolls of Thermo Chart Paper. A high-speed Thermal Printer, integral to the instrument, is also included.

For PC compatibility, Data Collection Software (50391), is necessary.
