LED Illuminators

Long life and energy efficient
Item Product Price QTY

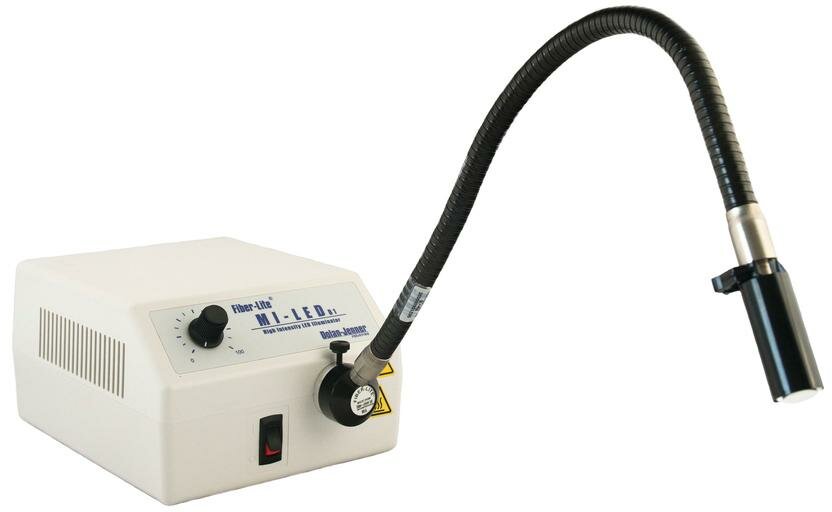

59253 Coolight Illuminator, LED, Single Gooseneck Login
59253V Coolight Illuminator, LED, Single Gooseneck, 220 Volt Login

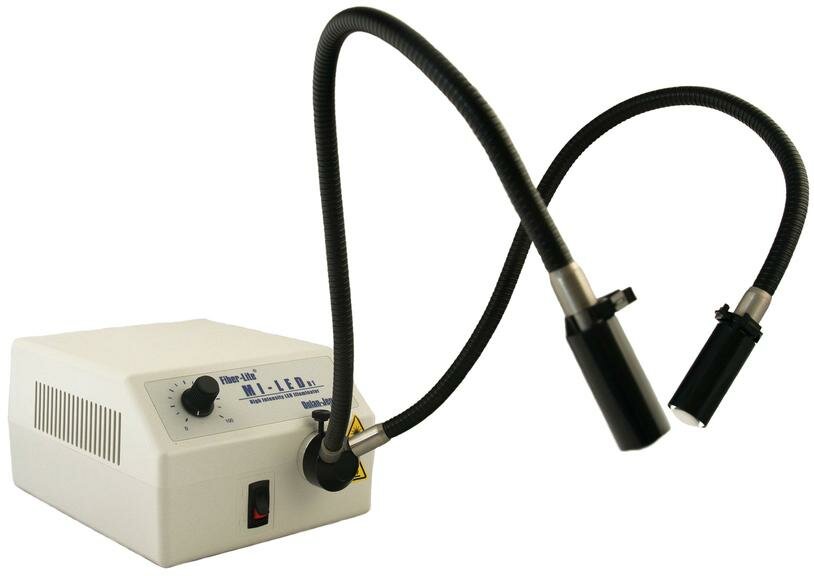

59254 Coolight Illuminator, LED, Dual Gooseneck Login
59254V Coolight Illuminator, LED, Dual Gooseneck, 220 Volt Login
Advantages over halogen and metal halide lamps include: long life, energy efficient, true “cool light” source, interchangeable fiber optic interface adapter, smaller package, minimal color temperature variation when dimmed and over lifetime, fast warm-up and output stabilization, no high voltage power supply

Coolight Illuminator, LED, Single and Dual Gooseneck

Advantages vs. halogen and metal halide lamps

  • long life
  • energy efficient
  • true “cool light” source
  • interchangeable fiber optic interface adapter
  • smaller package
  • minimal color temperature variation when dimmed and over lifetime
  • fast warm-up and output stabilization
  • no high voltage power supply

Why This Matters

  • Long life  >25,000 hours saves money.  A typical  150W  EKE halogen bulb will require 125 replacements before the LED fiber illuminator reaches 70% of its original light output. At $27.50 *125 the cost for replacement lamps is $3,438.00
  • Long life LED sources are environmentally responsible. Helps keep waste out of landfills.
    Energy use is just one-third that of a 150W halogen.
  • Halogen lamps turn yellow when aged and when dimmed. LED’s provide consistent color temperature throughout their lifetime.
  • LED’s have almost no infrared energy - they are truly a cool light source.A 150W halogen lamp operates between 260°F - 340°F (126°C – 171°C). Halogens can burn plastic fibers and fingers. LEDs are cooler and safer.
  • Halogen lamps transmit IR heat that can damage a sample / specimen.
  • Halogen lamps require costly IR filters that have to be replaced over time.

Complete 59253 and 59254 systems includes:

  • high intensity LED light engine optimized for fiber optic use
  • power stabilized, electronic LED driver
  • variable, manual intensity control
  • universal power supply for 100/240 VAC, 50/60 Hz
  • front panel illuminated on-off switch
  • stackable enclosure with integrated molded handle
  • fiber interface adapters available for large and small diameter fiber optic light guides
  • Built-in, low noise cooling fan
  • Power cord sets for North America, Europe or UK
Flux from fiber optic output * 470 lumens
Flux from fiber optic output** 650 lumens
Flux delivered into fiber optic *** 780 lumens
CRI (color rendering index) 70
CCT (correlated color temperature) 6,000 K typical

*   Coupled into 5 mm fiber optic bundle of NA = 0.6
**  Coupled into 8 mm fiber optic bundle of NA = 0.6
*** Calculated based on fiber optic throughput of 60%

Fiber optics with an active area of 3 mm—10 mm can be used with the LMI-6000; however, output flux will vary based on fiber diameter. Mechanically accommodates ferrules up to 25 mm outer diameter.
