Electronic Vaginal-Estrous Cycle-Monitor, Rat
- The best method of determining proestrus stage
- Powerful tool for the improvement of reproduction efficiency
- Simple operation

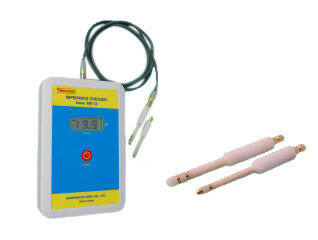

The Rat Vaginal Impedance Checker is designed to obtain precise information to determine the optimum day for mating during the rat estrous cycle.
The electrical impedance of the epithelial cell layer of vaginal mucosa is measured at the frequency of 1 kHz by insertion of the probe into the vagina. In the proestrus stage significantly higher impedance is produced compared to that in the other stages of the estrous cycle. 3 kohm of impedance can be considered a standard for indicating proestrus stage. Measuring range is 0 - 19.9kohm.
The conventional method (vaginal smear method) is a troublesome procedure requiring skill, time and labor.
The Rat Vaginal Impedance Checker is a reliable time and labor-saving device. Operation is so simple a novice can easily use it.
Important Notice: The 59160 Rat Vaginal Estrous Cycle Monitor was developed exclusively for rats. A mouse probe is available, but test results cannot be guaranteed in mice.
Rat Probe Dimensions: 55mm x 4.5mm OD
|Accuracy||+/- 1% +/- 1 digit|
|Battery||4 Rechargeable Battery (Ni-MH)/30hr Battery Life|
|Dimensions||90W x 135D x 35mmH|
|Weight||Approximately 200g (battery excluded)|
