|501955||Cat/Rabbit Ventilator, 50 ml||Login|
|5019510||Cat/Rabbit Ventilator, 100 ml||Login|
|56125||Cat/Rabbit Ventilator, 100 ml, Synchronized Start/Stop||Login|
|501965||Cylinder/Piston, 10-50 ml||Login|
|5019610||Cylinder/Piston, 20-100 ml||Login|
|56125-5||Cat/Rabbit Ventilator, 50ml, Synchronized Start/Stop||Login|
Valve Mechanism Features Nearly Zero Dead Space

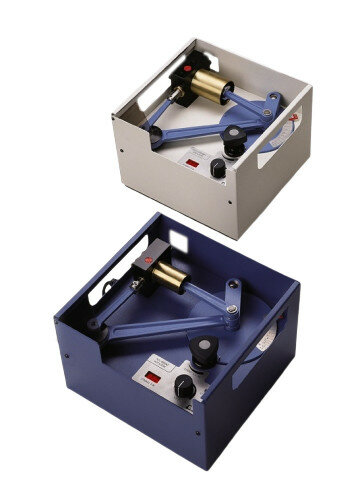

This "quality-first" line of animal ventilators from Basile is in every detail superior to competitive instruments. Their unique design ensures accuracy, durability and quietness of operation unequalled by any other ventilator.
Digital Stroke Rate Display
The stroke rate is displayed on an LED readout. These ventilators are the most accurate and reliable available, due to feedback controlled motor speed.
User Selected Pause
Model 56125 can be paused at any point in the respiration cycle for taking measurements or for gas analysis.
Easily Adjustable Stroke Volume
The stroke volume is adjustable whether the ventilator is on or off. For the most convenient and accurate stroke volume control available, the knob and scale remain stationary, even when the piston is in motion. Other advantages of this unique mechanism are the elimination of mechanical noise, reduced wear, and very low maintenance requirements.
The valve mechanism on these ventilators features nearly zero dead space and superb durability with no leakage. Expired air may be channeled for analysis and/or recycled, when used with anesthetic gases.
Cylinder/Piston Assemblies Available
Cat units are supplied with one of two easily interchangeable cylinder/piston assemblies that enable a broader range of stroke volumes.
|Cat, Rabbit||10-100 strokes/min|
|Cat, Rabbit||10-50 ml or 20-100 ml|
|Stroke Volume Reproducibility||±2%|
|Power||115 V/60 Hz|
