KD Scientific Syringe Pumps with infuse and withdraw capabilities provide maximum flexibility for varied applications. This feature permits applications such as automatic withdrawal of samples and unattended filling of syringes; fluid level adjustments with continual infusing and withdrawing; and the infusing of drug or nutritional materials, and diffusion into chemical reactors.

The high pressure syringe pump which more then doubles the linear force than the dual syringe pump. This extra force makes the pump ideal for delivery of fluid to reactors in chemical applications or for working with viscous fluids. The robust design of the syringe holder ensures the syringe is kept level during delivery of the fluid. It features two different types of clamping mechanisms, for both smaller and larger syringes. When the application demands a more rugged pump, this high pressure syringe pump.

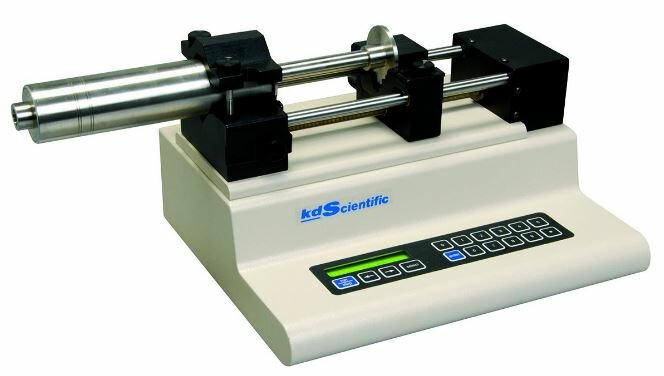

The 53240 Pump  features two modes of operation a dispense and a withdrawal mode. It is easy to set up and use in 2 quick steps; select the type of syringe and the flow rate. The selectable flow rate is entered directly into the program and stored in memory. A volume can also be set to dispense a known amount and then shut off.

Features

• Quick set up and installation
• High pressure syringe clamps
• Typical Accuracy 1% or better
  • 100 lbs linear force
• Wide variety of syringes from 10 µl to 140 ml
• Wide plunger travel
• Quick fluid filling
• Power reduction mode
• Volume dispense
• Minimum flow rate of 0.001 µl/hr (10 µl syringe)
• Maximum flow rate of 145.5 ml/min (140 ml syringe)
• Power failure indication
• Anti-siphon
• TTL interface for remote activation
• RS-232
• Daisy chain up to 99 pumps together
• Applications
• Continuous delivery of fluid
• Pilot plant reactor dosing
• Dispensing viscous fluids
• Optional multi-step keypad programmable feature available
