Ugo Basile Lesion Making Device
| Item | Product | Price | QTY |
|---|---|---|---|
| 53500 | Ugo Basile Lesion Making Device | Login |
Add to Cart

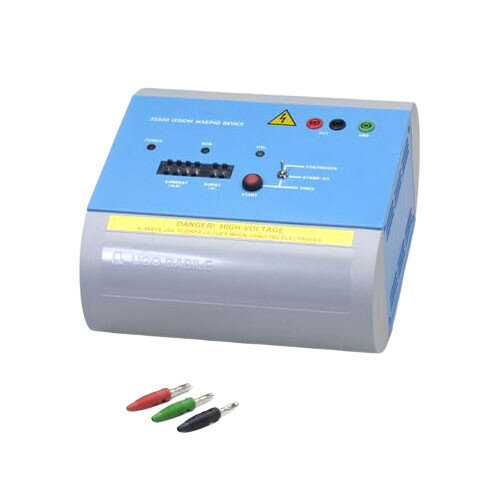

This compact, solid state direct current (DC) Lesion Maker has been designed for the production of localized lesions in small animals. The current generator is protected against short circuit, which prevents the electronics from getting damaged when the electrodes accidentally come into contact with each other.
The Basile Lesion Making Device provides constant DC current in mA from 10 to 99.99 mA. The pulse duration may be timed by the instrument between 1 and 99 seconds, or manually controlled.
A yellow LED warns when the impedance is too high for the preset current. The current generator is protected against accidental short circuit of the output. The maximum electrode resistance is 20 M? (10 µA) down to 2 K? (100mA) and the Compliance Voltage is from 1-99V.
Comes complete with set of 3 output plugs
| Current Range | 10 µA to 99 mA |
| Max Electrode Resistance | 20 MO (10 µA) down to 2KO (100 mA) |
| Pulse Duration | 1-99 sec. or manually controlled |
| Compliance Volatage | 200V |
| Shipping Wt.: | 6 lbs. (2.8 kg) |
| Dimensions (cm): | 25 x 15 x 11 |
