The Standard for Versatility and Control

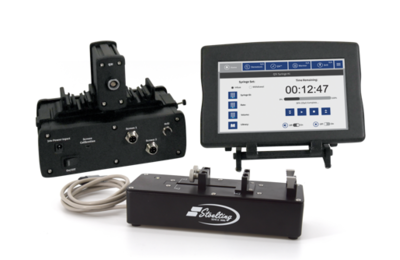

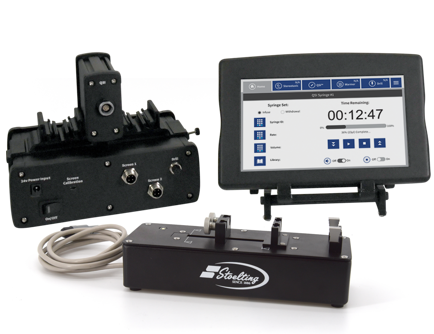

Control one or two independent injections with Stoelting’s latest QSI™ Stereotaxic Injector. Automatic infusion or withdrawal of nL-µL volumes. Program injection parameters (volume, rate and syringe specifications) using the easy-to-use touch screen control box. Accommodates Hamilton syringes sized 0.5uL-250uL. Available as a single or dual injector. If purchased as a single injector, add a second injector at any time.

QSI™ Features

• Easy-to-use Touch Screen Control Box
• LED lights with low, medium, and high setting options
• Control Single or Dual Injections
• Preprogrammed Syringe Specifications
• Out-of-range Warnings
• Infuse and Withdraw

Shipping Dimensions:  15 x 9 x 6 in, 5lbs

For Infusion and Withdrawal of Pico and Nanoliter Volumes

Stoelting’s QSI™ (Quintessential Stereotaxic Injector) establishes a new standard of versatility and control. Only the QSI™ Injector enables the researcher to set volumes as small as 1 nanoliter and flow rates from 0.001µl/min to 363µl/min. It works with syringes from 0.5ul up to 250µl.

The QSI™ stereotaxic injector allows accurate control of the volume and flow rate of injections without wasting precious fluids in excessively long tubing. The fluid goes directly through a needle on the syringe, mounted directly on most stereotaxic instruments.

Built-in LED lights can be controlled by the touch screen controller with low, medium, and high light options.

Library of Syringes

The QSI™ contains a library of common syringes and plunger diameters, so the user may simply scroll the list to select the desired syringe. Because of the Quintessential Stereotaxic Injector’s unique design, it can be attached to any micromanipulator and accommodates practically any make of syringe.

Touch Screen Controller
The touch screen controller is a microprocessor-based controller that facilitates operation with an easy-to-use display. A help menu is included to make infusion and withdrawal easier than ever.
